Reporting

Overview

The Swivel Administration Console allows a limited number of reports to be generated and scheduled. This document outlines some of the information that can be queried through the reporting feature.

• The Audit Log is where Swivel maintains an activity log for users. For more information on the Audit Log feature within Swivel, see the Audit Log.

• For information on querying a built in MariaDB database, see Database Queries and for a MS SQL database see the Microsoft SQL Server.

• Also see the API Reference.

Reporting Access and Restrictions

Swivel reports from a global database. Where access is restricted for Helpdesk users to specific repositories and groups, it may be necessary to disable the reporting function for Helpdesk users.

However, reports can be produced by Administrative level users by creating scheduled reporting based on the required groups. These reports can then be made available to the relevant Helpdesk users managing those groups, such as through automated emails.

Producing Instant Reports

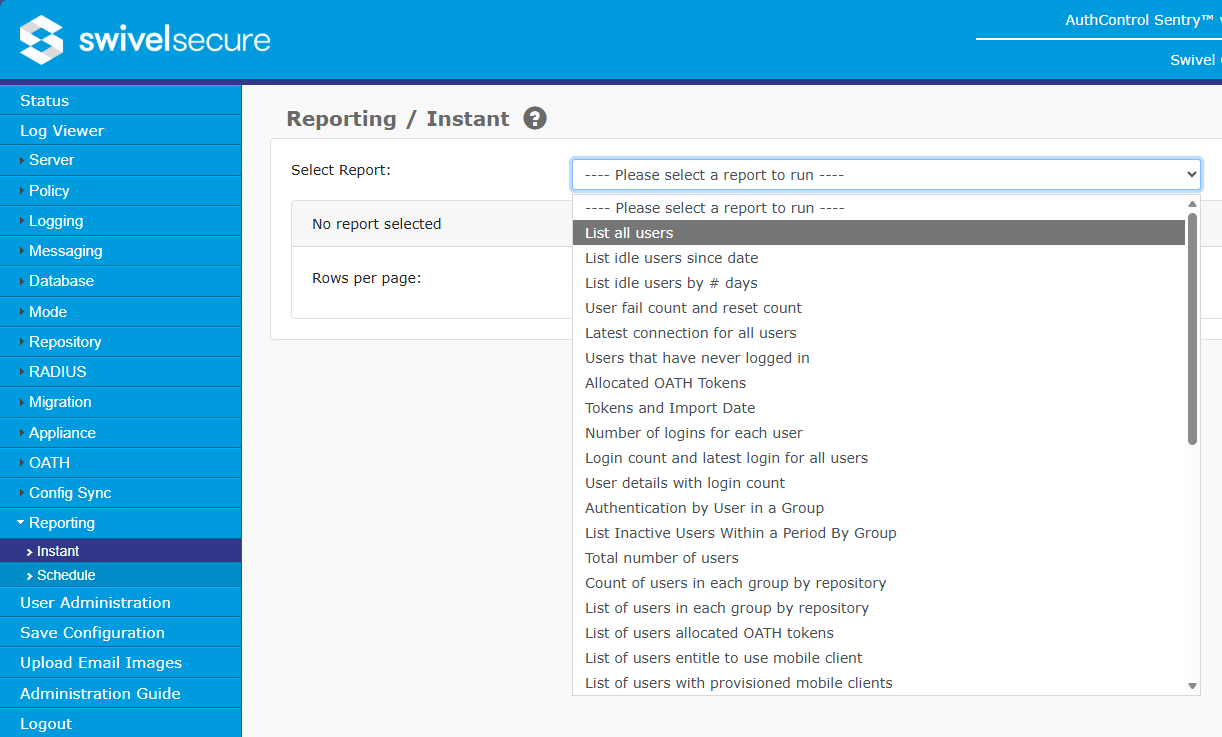

1. From the Swivel Administration console select Reporting then Instant.



2. Depending on the report, additional parameters may be selected.



3. Click on Run Report to generate data.

4. Clicking on Export as XML or Export as CSV allows the report to be saved from the browser.

Producing Scheduled Reports

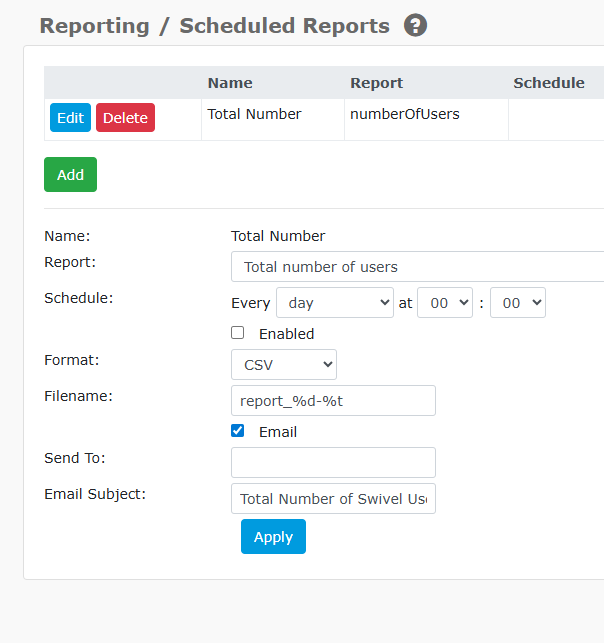

From the Swivel Administration console select Reporting then Scheduled. Existing scheduled reports are listed. For information on creating custom schedules see Custom Scheduling.

To create a new scheduled report click on Add.

Enter the following information:

• Name: Name for the report.

• Report: Select the required report.

• Schedule: How often the report is run.

• Format: The output format for the report (XML or CSV).

• Filename: The filename given to the report. For multiple reports to be run at the same time this should be unique. Example: inactive_users_%d-%t.txt creates a file called inactive_users_date-time.txt.

• Email: Ticking this box enables reporting by email. This function is available from Swivel 3.10 onwards. The email address is set under Policy -> Reporting.

• Enabled: Ticking this box enables the report to be run.

Apply the settings to save them.

Scheduled Report File Locations

Scheduled reports are stored within the Swivel installation and vary depending upon the install type and version.

• Swivel 3.9.1 onwards (Appliance/Software): <swivel home>/.swivel/reporting

• Swivel 3.9: <path to pinsafe>/WEB-INF/reports

Path Definitions:

• For an appliance <path to pinsafe> is: /usr/local/tomcat/webapps/pinsafe

• For a Windows 3.9.1 installation, <swivel home> will depend on the user account under which Tomcat is running, and will typically be C:\Users\Account. You can check the actual directory from the PINsafe Administration Console Status page. Look for Data Storage Root.

• For a Swivel 3.9 software install under Windows, <path to pinsafe> is usually: C:\Program Files\Apache Software Installation\Tomcat 5.5\webapps\pinsafe. Adjust accordingly if using a different version of Tomcat.

Report Date Format

The report date format can be set on the Swivel Administration console under Server -> Language -> Date Format.

Available Reports

• List all users

• List all users with no activity since a given date

• List all users with no activity within a given number of days

• List login failures and self-resets since the last successful login

• List creation time and latest login for all users

• List users that have never logged in

• List number of users hourly logged

Custom Reports

Warning

Always backup files before editing.

The report definition file is located at:

• Appliances after 3.9: /home/swivel/.swivel/conf/reports.xml

• Appliances up to 3.9: /usr/local/tomcat/webapps/pinsafe/WEB-INF/conf/reports.xml

• Software install after 3.9: <swivel home>/.swivel/conf/reports.xml

• Software install up to 3.9: <path to Tomcat>/webapps/pinsafe/WEB-INF/conf/reports.xml

See above for details on finding the location of <swivel home>.

The default contents of this file at the time of writing is as follows:

<?xml version="1.0" encoding="UTF-8"?>
<reports>
     <report name="">
             <title>---- Please select a report to run ----</title>
     <description>No report selected</description>
     </report>
     <report name="allUsers">
     <title>List all users</title>
             <description>Lists all usernames in the PINsafe database</description>
             <headers>
                     <header>Username</header>
             </headers>
             <fields>H</fields>
             <tables>PINSAFEJ</tables>
     </report>
     <report name="idleUsers">
             <title>List idle users</title>
     <description>Lists users that have not logged in since a specified date</description>
             <headers>
                     <header>Username</header>
                     <header>Last Login</header>
             </headers>
             <fields>U.H, A.D</fields>
             <tables>PINSAFEJ U LEFT OUTER JOIN PINSAFEN A ON U.G = A.A AND A.C = 0</tables>
             <query>A.D IS NULL OR A.D &lt; ?</query>
             <params>
                     <param name="idledate" type="Date" label="Idle since" />
             </params>
     </report>
     <report name="failures">
        <title>User fail count and reset count</title>
    <description>Lists the number of consecutive login failures and self-resets since the last successful login for all users</description>
        <headers>
            <header>Username</header>
            <header>Fail Count</header>
            <header>Reset Count</header>
        </headers>
        <fields>H, B, F</fields>
        <tables>PINSAFEJ</tables>
        <query />
     </report>
     <report name="connection">
     <title>Latest connection for all users</title>
        <description>Lists the creation time and last login time for all users</description>
        <headers>
            <header>Username</header>
            <header>Created</header>
            <header>Last Login</header>
        </headers>
        <fields>U.H, A1.D, A2.D</fields>
        <tables>PINSAFEJ U INNER JOIN PINSAFEN A1 ON U.G=A1.A AND A1.C=3 LEFT OUTER JOIN PINSAFEN A2 ON U.G=A2.A AND A2.C=0</tables>
        <query />
     </report>
     <report name="noconnect">
     <title>Users that have never logged in</title>
        <description>Lists all users that have never successfully logged into PINsafe</description>
        <headers><header>Username</header></headers>
        <fields>H</fields>
        <tables>PINSAFEJ</tables>
        <query>G NOT IN (SELECT DISTINCT A FROM PINSAFEN WHERE C=0)</query>
     </report>
</reports>

Adding New Reports

Currently, requests for new reports can be made via your reseller to PINsafe support (supportdesk@swivelsecure.com).

Once you’ve obtained a new report, the easiest way to add it to the configuration file above is to use WinSCP. See the WinSCP How To Guide for further information.

To add custom reports to the built-in reporting feature of PINsafe, append the XML block to the reports.xml file. Insert new reports immediately before the last line: </reports>.

Once you have installed the report, go to Reporting -> Instant, and the new report should be available from the drop-down list. You do not need to restart Tomcat; the list is reloaded every time the report page is displayed.

Warning

We do not recommend writing your own reports, but for those who are competent with SQL and recognize that the reports are essentially XML-encoded fragments of SQL statements, you can get the full database schema for the Swivel database from the Database Schema.

Note

Any reports that reference the policy flags table, PINSAFEC, will not work with Sentry version 4.2 or later, and must reference the new status flags table, PINSAFES. Custom reports listed below that need changing are noted as such, and two alternatives are given.

Creation time, last login and number of logins

This report lists all successful logins within the last 30 days (the audit trail is only kept for 30 days by default, but can be set to a different value).

<report name="loginCount">
<title>Login count and latest login for all users</title>
<description>Lists the creation time, last login time and number of logins for all users</description>
<headers>
<header>Username</header>
<header>Created</header>
<header>Last Login</header>
<header>Login Count</header>
</headers>
<fields>U.H, MAX(A1.D), MAX(A2.D), COUNT(AU.G)</fields>
<tables>PINSAFEJ U INNER JOIN PINSAFEN A1 ON U.G=A1.A AND A1.C=3 LEFT OUTER
JOIN PINSAFEN A2 ON U.G=A2.A AND A2.C=0 INNER JOIN PINSAFEM AU ON U.G=AU.G AND AU.A=0
GROUP BY U.G, U.H</tables>
<query />
</report>

If you want to include users that have not logged in within the last 30 days, change INNER JOIN PINSAFEM to LEFT OUTER JOIN PINSAFEM.

List all users, together with their login count

This report lists the First Name, Last Name, Username, Phone Number, Creation Date, Last Login Date, and Login Count. Note: creation date is valid if within length of audit time.

<report name="user-login-count">
    <title>User details with login count</title>
    <description>Lists all users, together with their login count over the last 30 days, and last login time</description>
    <headers>
        <header>Username</header>
        <header>First name</header>
        <header>Last name</header>
        <header>Phone</header>
        <header>Created</header>
        <header>Latest login</header>
        <header>Login count</header>
    </headers>
    <fields>U.H, ATT1.C, ATT2.C, ATT3.C, ACT1.D, ACT2.D, AUD.CT</fields>
    <tables><![CDATA[
    PINSAFEJ U
    LEFT OUTER JOIN PINSAFEP ATT1 ON U.G=ATT1.A AND ATT1.B='givenname'
    LEFT OUTER JOIN PINSAFEP ATT2 ON U.G=ATT2.A AND ATT2.B='familyname'
    LEFT OUTER JOIN PINSAFEP ATT3 ON U.G=ATT3.A AND ATT3.B='phone'
    LEFT OUTER JOIN PINSAFEN ACT1 ON U.G=ACT1.A AND ACT1.C=3
    LEFT OUTER JOIN PINSAFEN ACT2 ON U.G=ACT2.A AND ACT2.C=0
    LEFT OUTER JOIN (SELECT G, COUNT(*) CT FROM PINSAFEM WHERE A=0 GROUP BY G) AUD ON U.G=AUD.G
    ]]></tables>
</report>

List users of a particular group showing their last login over the last month

You will be prompted for the group name. Type in the actual name of the group. Remember it is the Swivel group name, not the Active Directory FQDN.

<report name="connectbygroup">
     <title>Authentication by User in a Group</title>
     <description>List of users in a particular group, listing their logins over the last month</description>
     <headers>
         <header>Group</header>
         <header>Username</header>
         <header>Login Date</header>
     </headers>
     <fields>G.A, U.H, A.E</fields>
     <tables>PINSAFEM A INNER JOIN PINSAFEJ U ON A.G=U.G INNER JOIN PINSAFEI G ON U.G=G.B</tables>
     <query>G.A=? ORDER BY U.C</query>
     <params>
         <param name="group" type="String" label="Group Name" />
     </params>
 </report>

List Inactive Users Within a Period By Group

Note that for it to work properly, set the Policy -> General, Audit Log length to a suitably large value (example 365 days).

<report name="idleUsersByGroup">
<title>List Inactive Users Within a Period By Group</title>
<description>List members of a given group who did not log in within a specified time</description>
<headers>
 <header>Username</header>
 <header>Last Login</header>
</headers>
<fields>U.H, A.D</fields>
<tables>PINSAFEJ U LEFT OUTER JOIN PINSAFEN A ON A.A = U.G AND A.C = 0 JOIN PINSAFEI G ON G.B = U.G AND G.A = ?</tables>
<query>U.G NOT IN (SELECT G FROM PINSAFEM WHERE A=0 AND E &gt;= ? AND E &lt;= ?) </query>
<params>
  <param name="group" type="String" label="Group" />
 <param name="startdate" type="Date" label="Start Date" />
 <param name="enddate" type="Date" label="End Date" />
</params>
</report>

Total number of users

<report name="numberOfUsers">
  <title>Total number of users</title>
  <description>Report the total number of users in the database</description>
  <headers>
    <header>Num. Users</header>
  </headers>
  <tables>PINSAFEJ</tables>
  <fields>COUNT(*)</fields>
</report>

Total number of users in each group

<report name="groupMemberCount">
  <title>Count of users in each group by repository</title>
  <description>List the number of users in each group within each repository</description>
  <headers>
    <header>Repository</header>
    <header>Group</header>
    <header>Num. Users</header>
  </headers>
  <fields>R.B, G.A, COUNT(U.G)</fields>
  <tables>PINSAFEJ U JOIN PINSAFEL R ON U.I=R.A JOIN PINSAFEI G ON U.G=G.B GROUP BY R.B, G.A ORDER BY R.B, G.A</tables>
</report>

List users in each group

<report name="groupMembers">
  <title>List of users in each group by repository</title>
  <description>List the users in each group by repository</description>
  <headers>
    <header>Repository</header>
    <header>Group</header>
    <header>Users</header>
  </headers>
  <fields>R.B, G.A, U.C</fields>
  <tables>PINSAFEJ U JOIN PINSAFEL R ON U.I=R.A JOIN PINSAFEI G ON U.G=G.B ORDER BY R.B, G.A, U.C</tables>
</report>

List all OATH users

<report name="TokenUsers">
  <title>List of users allocated OATH tokens</title>
  <description>Lists all users that have been allocated OATH tokens</description>
  <headers>
    <header>User</header>
  </headers>
  <fields>U.H</fields>
  <tables>PINSAFEJ U JOIN PINSAFEQ T ON U.G=T.C</tables>
</report>

List users with Mobile permissions

<report name="MobileUsers">
  <title>List of users entitle to use mobile client</title>
  <description>Lists users that have the "Mobile" right</description>
  <headers><header>User</header></headers>
  <fields>U.H</fields>
  <tables>PINSAFEJ U JOIN PINSAFEB R ON U.G = R.B</tables>
  <query>R.A = 2</query>
</report>

List users with a provisioned Mobile device

<report name="AllocatedMobileUsers">
  <title>List of users with provisioned mobile clients</title>
  <description>Lists users that have provisioned their mobile clients</description>
  <headers><header>User</header></headers>
  <fields>U.H</fields>
  <tables>PINSAFEJ U JOIN PINSAFEO M ON U.G = M.C</tables>
</report>

List users with Mobile client rights that have not yet provisioned a device

<report name="UnprovisionedMobileUsers">
  <title>List of users that have not yet provisioned a mobile device</title>
  <description>Lists users that have the right to use a mobile client, but have not yet provisioned one</description>
  <headers><header>User</header></headers>
  <fields>U.H</fields>
  <tables>PINSAFEJ U JOIN PINSAFEB R ON U.G = R.B AND R.A=2</tables>
  <query>U.G NOT IN (SELECT C FROM PINSAFEO)</query>
</report>

List the number of login failures for all users

<report name="loginFailCount">
 <title>Count of failed logins for all users</title>
 <description>Lists the number of failed logins for each user, to the extent of the audit records</description>
 <headers>
     <header>Username</header>
     <header>Fail Count</header>
 </headers>
 <fields>I, Count(A)</fields>
 <tables>PINSAFEM</tables>
 <query>A=14 group by I order by I</query>
</report>

List of users that provisioned before a given date

<report name="oldProvisions">
 <title>List of users that provisioned before a given date</title>
 <description>Lists users that last provisioned their mobile app earlier than a specified date.</description>
 <headers>
     <header>Username</header>
     <header>Provision date</header>
 </headers>
 <params>
     <param name="cutoffdate" type="Date" label="Provisioned before"/>
 </params>
 <fields>U.H, A.D</fields>
 <tables>PINSAFEJ U JOIN PINSAFEO M on U.G = M.C JOIN PINSAFEN A on U.G = A.A and A.C=15</tables>
 <query>A.D &lt; ?</query>
</report>

List unprovisioned Mobile Users for a given date

<report name="Unprovisionedbydate" supporteddbs="mariadb,mysql,mssql">
 <title>List Unprovisioned Mobile Users older than given date</title>
 <description>Lists users, together with the latest date that they Provisioned</description>
 <headers>
     <header>Username</header>
     <header>Last Changed</header>
 </headers>
 <fields>U.H, U.C name, MAX(A.D) lastdate</fields>
 <tables>PINSAFEJ U JOIN PINSAFEB R ON U.G = R.B AND R.A=2; PINSAFEJ U JOIN PINSAFEN A on U.G=A.A and A.C in (1,2,3,6) group by A.A having date &lt; ? order by lastdate</tables>
 <query>U.G NOT IN (SELECT C FROM PINSAFEO)</query>
 <params>
     <param name="changedate" type="Date" label="Latest date" />
 </params>
</report>

List the number of login failures since a given date, for all users

<report name="loginFailCountSinceDate">
 <title>Count of failed logins since a given date for all users</title>
 <description>Lists the number of failed logins for each user, since a given date</description>
 <headers>
     <header>Username</header>
     <header>Fail Count</header>
 </headers>
 <fields>I, Count(A)</fields>
 <tables>PINSAFEM</tables>
 <query>A=14 and E&gt;? group by I order by I</query>
 <params>
     <param name="sinceDate" type="Date" label="Cutoff Date" />
 </params>
</report>

List the last PIN change for all users

Note: There are different versions for different databases.

For MySQL, MariaDB, MSSQL:

<report name="lastchanged" supporteddbs="mysql,mariadb,mssql">
 <title>List of PIN changes by date</title>
 <description>Lists all users, together with the latest date that their PIN was changed, or the creation date if never changed, starting with the oldest</description>
 <headers>
     <header>Username</header>
     <header>Last Changed</header>
 </headers>
 <fields>U.C name, MAX(A.D) lastdate</fields>
 <tables>PINSAFEJ U JOIN PINSAFEN A on U.G=A.A and A.C in (1,2,3,6) group by A.A order by lastdate</tables>
</report>

For Internal Database:

<report name="lastchanged" supporteddbs="internal">
 <title>List of PIN changes by date</title>
 <description>Lists all users, together with the latest date that their PIN was changed, or the creation date if never changed, starting with the oldest</description>
 <headers>
     <header>Username</header>
     <header>Last Changed</header>
 </headers>
 <fields>U.C name, Q.DD lastdate</fields>
 <tables>PINSAFEJ U JOIN (SELECT A, Max(D) DD FROM PINSAFEN where C in (1,2,3,6) group by A) Q on U.G = Q.A order by lastdate</tables>
</report>

List PIN changes older than a given date

For MySQL, MariaDB, MSSQL:

<report name="lastchanged2" supporteddbs="mariadb,mysql,mssql">
 <title>List of PIN changes older than given date</title>
 <description>Lists users, together with the latest date that their PIN was changed, or the creation date if never changed, starting with the oldest, given a date cutoff</description>
 <headers>
     <header>Username</header>
     <header>Last Changed</header>
 </headers>
 <fields>U.C name, MAX(A.D) lastdate</fields>
 <tables>PINSAFEJ U JOIN PINSAFEN A on U.G=A.A and A.C in (1,2,3,6) group by A.A having date &lt; ? order by lastdate</tables>
 <params>
     <param name="changedate" type="Date" label="Latest date" />
 </params>
</report>

For Internal Database:

<report name="lastchanged2" supporteddbs="internal">
 <title>List of PIN changes older than given date</title>
 <description>Lists users, together with the latest date that their PIN was changed, or the creation date if never changed, starting with the oldest, given a date cutoff</description>
 <headers>
     <header>Username</header>
     <header>Last Changed</header>
 </headers>
 <fields>U.C name, Q.DD lastdate</fields>
 <tables>PINSAFEJ U JOIN (SELECT A, Max(D) DD FROM PINSAFEN where C in (1,2,3,6) group by A) Q on U.G = Q.A</tables>
 <query>Q.DD &lt; ? order by lastdate</query>
 <params>
     <param name="changedate" type="Date" label="Latest date" />
 </params>
</report>

Lists the number of logins for each hour

Note: For MariaDB and MySQL only.

<report name="loginsByHour">
<title>List of logins by hour</title>
<description>Lists the number of logins for each hour</description>
<headers>
    <header>Date/Time</header>
<header>Count</header>
</headers>
<fields>HOUR(E), COUNT(*)</fields>
<tables>PINSAFEM</tables>
<query>A=0 GROUP BY HOUR(E)</query>
</report>

List number of logins for each day and hour for the last 7 days

<report name="loginsByDayHour">
<title>List of logins by Day and Hour</title>
<description>Lists the number of logins for each day and hour for the last 7 days</description>
<headers>
    <header>Date</header>
    <header>Hour</header>
    <header>Count</header>
</headers>
<fields>DATE(E), HOUR(E), COUNT(*)</fields>
<tables>PINSAFEM</tables>
<query>A=0 AND E&lt;CURDATE() AND E&gt;DATE_SUB(CURDATE(), INTERVAL 7 DAY) GROUP BY DATE(E), HOUR(E)</query>
</report>

Enhancement to the previous report (failures + group restrict)

<report name="loginsByDayHourPerGroup">
<title>List of logins by Day and Hour for a group</title>
<description>Lists the number of logins or failures for each day and hour for the last 7 days</description>
<headers>
    <header>Date</header>
    <header>Hour</header>
    <header>Count</header>
</headers>
<fields>DATE(E), HOUR(E), COUNT(*)</fields>
<tables>PINSAFEM</tables>
<query>(A=0 OR A=14) AND E&lt;CURDATE() AND E&gt;DATE_SUB(CURDATE(), INTERVAL 7 DAY) AND G IN (SELECT B FROM PINSAFEI WHERE A=?) GROUP BY DATE(E), HOUR(E)</query>
<params>
    <param name="group" type="String" label="Group" />
</params>
</report>

List users that have been recently deleted

<report name="deletedUsers">
  <title>List of users that have been deleted recently</title>
  <description>Lists usernames that have been permanently deleted, but who still appear in the audit table</description>
  <headers><header>Username</header></headers>
  <fields>DISTINCT(I)</fields>
  <tables>PINSAFEM</tables>
  <query>I NOT IN (SELECT C FROM PINSAFEJ)</query>
</report>

Custom Reports for Multiple Database Types

The following reports will work with differing database types as the database is specified within the report as db="mysql", db="mssql", etc.

Users marked as deleted

This report needs to be modified to work with Sentry version 4.2 onwards.

Version 4.2 onwards:

<report name="deleted-users">
    <title>List of users marked as deleted</title>
    <description>List all users who are currently marked as deleted.</description>
    <headers><header>Username</header></headers>
    <fields>U.H</fields>
    <tables>PINSAFEJ U INNER JOIN PINSAFES F ON U.G=F.A</tables>
    <query>F.D &amp; 1 = 1</query>
</report>
<report name="deleted-users-by-date">
    <title>List of users marked as deleted recently</title>
    <description>List all users who have been marked as deleted in the last #days.</description>
    <headers>
        <header>Username</header>
        <header>Date</header>
    </headers>
    <fields>U.H, A.D</fields>
    <tables>PINSAFEJ U INNER JOIN PINSAFEC F ON U.G=F.C AND F.B=4 AND F.D=1 INNER JOIN PINSAFEN A ON U.G=A.A AND A.C=10</tables>
    <query db="mysql">F.D &amp; 1 = 1 AND A.D &gt; DATE_SUB(NOW(), INTERVAL ? DAY)</query>
    <query db="mssql">F.D &amp; 1 = 1 AND A.D &gt; DATEADD(day, -?, GETDATE())</query>
    <query db="oracle">F.D &amp; 1 = 1 AND A.D &gt; ADD_DAYS(SYSDATE, -?)</query>
    <query db="internal">F.D &amp; 1 = 1 AND {fn TIMESTAMPDIFF(SQL_TSI_DAY, A.D, CURRENT_DATE)} &lt; ? </query>
    <params>
        <param name="days" type="Integer" label="Cutoff days" />
    </params>
</report>

Up to version 4.1.3:

<report name="deleted-users">
    <title>List of users marked as deleted</title>
    <description>List all users who are currently marked as deleted.</description>
    <headers><header>Username</header></headers>
    <fields>U.H</fields>
    <tables>PINSAFEJ U INNER JOIN PINSAFEC F ON U.G=F.C AND F.B=4 AND F.D=1</tables>
</report>
<report name="deleted-users-by-date">
    <title>List of users marked as deleted recently</title>
    <description>List all users who have been marked as deleted in the last #days.</description>
    <headers>
        <header>Username</header>
        <header>Date</header>
    </headers>
    <fields>U.H, A.D</fields>
    <tables>PINSAFEJ U INNER JOIN PINSAFEC F ON U.G=F.C AND F.B=4 AND F.D=1 INNER JOIN PINSAFEN A ON U.G=A.A AND A.C=10</tables>
    <query db="mysql">A.D &gt; DATE_SUB(NOW(), INTERVAL ? DAY)</query>
    <query db="mssql">A.D &gt; DATEADD(day, -?, GETDATE())</query>
    <query db="oracle">A.D &gt; ADD_DAYS(SYSDATE, -?)</query>
    <query db="internal">{fn TIMESTAMPDIFF(SQL_TSI_DAY, A.D, CURRENT_DATE)} &lt; ? </query>
    <params>
        <param name="days" type="Integer" label="Cutoff days" />
    </params>
</report>

Users whose PIN never expires

Version 4.2 onwards:

 <report name="pin-never-expires">
    <title>List of users whose PIN never expires</title>
    <description>Lists the names of users that have the "PIN never expires" flag set.</description>
    <headers><header>Username</header></headers>
    <fields>U.H</fields>
    <tables>PINSAFEJ U INNER JOIN PINSAFES F ON U.G=F.A</tables>
    <query>F.B=1</query>
</report>

The above report can be modified to show users who are marked as disabled, locked, deleted, inactive or require a PIN change, by changing the query as follows:

• User must change PIN after next login: <query>F.C=1</query>

• User disabled: <query>F.D &amp; 2 = 2</query>

• User locked (any reason): <query>F.D &amp; 124 <> 0</query>

• User is marked as deleted: <query>F.D &amp; 1 = 1</query>

Up to version 4.1.3:

<report name="pin-never-expires">
    <title>List of users whose PIN never expires</title>
    <description>Lists the names of users that have the "PIN never expires" flag set.</description>
    <headers><header>Username</header></headers>
    <fields>U.H</fields>
    <tables>PINSAFEJ U INNER JOIN PINSAFEC F ON U.G=F.C</tables>
    <query>F.B=3 AND F.D=1</query>
</report>

The above report can be modified to show users who are marked as disabled, locked, deleted, inactive or require a PIN change, by changing the value of F.B in the query as follows:

• 0 - User disabled

• 1 - User locked

• 2 - User must change PIN after next login

• 3 - User’s PIN never expires

• 4 - User is marked as deleted

• 5 - User is inactive

All User Logins, including login location

Note: This will only report logins as far back as audit records are retained (default 30 days). Most AgentXML integrations (e.g., OWA) do not report the user’s location.

<report name="connections">
  <title>All recent connections for all users</title>
  <description>Lists the login times and location (where available) for all users, within the audit retention time</description>
  <headers>
    <header>Username</header>
    <header>Created</header>
    <header>Last Login</header>
    <header>Location</header>
  </headers>
  <fields>U.H, A1.D, AU.E, AU.B</fields>
  <tables>PINSAFEJ U INNER JOIN PINSAFEN A1 ON U.G=A1.A AND A1.C=3 LEFT OUTER JOIN PINSAFEM AU ON U.G=AU.G AND AU.C=0</tables>
  <query>1 ORDER BY U.H, AU.E DESC</query>
</report>

All user logins and failures for a given group

<report name="LoginDetails">
  <title>Details of User logins</title>
  <description>List of all logins and login failures within a given time for a given group</description>
  <headers>
    <header>Username</header>
    <header>Activity</header>
    <header>Date/Time</header>
    <header>Location</header>
    <header>Details</header>
  </headers>
  <fields>I, if(A=0, 'login', 'failed'), E, B, C</fields>
  <tables>PINSAFEM</tables>
  <query db="mariadb,mysql">(A=0 OR A=14) AND DATEDIFF(CURRENT_DATE(), E) &lt; ? AND G IN (SELECT B FROM pinsafei WHERE A=?) ORDER BY I, E desc</query>
  <params>
    <param name="days" label="Number of days" type="Integer" />
    <param name="group" label="Group" type="String" />
  </params>
</report>

All login failures in the last few hours

<report name="RecentLoginFailCount">
  <title>Count of failed logins in the last x hours</title>
  <description>Lists the number of failed logins for each user in the last few hours</description>
  <headers>
    <header>Username</header>
    <header>Fail Count</header>
  </headers>
  <fields>I, Count(A)</fields>
  <tables>PINSAFEM</tables>
  <query db="mariadb,mysql">A=14 and E>DATE_SUB(CURRENT_TIMESTAMP(), INTERVAL ? HOUR) group by I order by I</query>
  <params>
    <param name="cutoffHours" type="Integer" label="# hours"/>
  </params>
</report>

Other Reports

Idle Users for the last 180 days but created over 30 days

<report name="idleusers180createdover30">
    <title>Users who never logged in over 180 days but created over 30</title>
    <description>List the number of users who have never logged in over the last 180 days but created more than 30 days ago</description>
    <headers>
    <header>Username</header>
    </headers>
    <fields>U.H</fields>
    <tables>PINSAFEJ U JOIN PINSAFEN A1 ON U.G = A1.A AND A1.C = 3 LEFT OUTER JOIN PINSAFEN A2 ON U.G = A2.A AND A2.C=0</tables>
    <query><![CDATA[(A1.D &lt; DATE_SUB(NOW(), INTERVAL 30 DAY)) AND (A2.D IS NULL OR A2.D &lt; DATE_SUB(NOW(), INTERVAL 180 DAY))]]></query>
</report>

List inactive users, locked, disabled, deleted and show creation date

Version 4.2 onwards:

<report name="inactivelockeddisabledUsers">
    <title>Users inactive, locked, disabled, deleted and show creation, login, PIN change date</title>
    <description>List all Users inactive, locked, disabled, deleted and show creation, login, PIN change date</description>
    <headers>
        <header>UID</header>
        <header>REPOS</header>
        <header>DISABLED</header>
        <header>LOCKED</header>
        <header>DELETED</header>
        <header>INACTIVE</header>
        <header>CREATED</header>
        <header>LOGGEDIN</header>
        <header>PINCHANGE</header>
    </headers>
    <fields><![CDATA[U.H, R.B, S.D & 2 = 2, S.D & 116 <> 0, S.D & 1 = 1, S.D & 8 = 8, A1.D, A2.D, A3.D]]></fields>
    <tables><![CDATA[PINSAFEJ U JOIN PINSAFEL R ON U.I=R.A JOIN PINSAFES S ON U.G=S.A LEFT OUTER JOIN PINSAFEN A1 ON U.G=A1.A AND A1.C=3 LEFT OUTER JOIN PINSAFEN A2 ON U.G=A2.A AND A2.C=0 LEFT OUTER JOIN PINSAFEN A3 ON U.G=A3.A AND A3.C=1]]></tables>
</report>

Up to version 4.1.3:

<report name="inactivelockeddisabledUsers">
   <title>Users inactive, locked, disabled, deleted and show creation, login, PIN change date</title>
   <description>List all Users inactive, locked, disabled, deleted and show creation, login, PIN change date</description>
  <headers>
    <header>UID</header>
    <header>REPOS</header>
    <header>DISABLED</header>
    <header>LOCKED</header>
    <header>DELETED</header>
    <header>INACTIVE</header>
    <header>CREATED</header>
    <header>LOGGEDIN</header>
    <header>PINCHANGE</header>
 </headers>
  <fields>U.H, R.B, S1.D, S2.D, S3.D, S4.D, A1.D, A2.D, A3.D</fields>
  <tables><![CDATA[PINSAFEJ U JOIN PINSAFEL R ON U.I=R.A LEFT OUTER JOIN PINSAFEC S1 ON U.G=S1.C AND S1.B=0 LEFT OUTER JOIN PINSAFEC S2 ON U.G=S2.C AND S2.B=1 LEFT OUTER JOIN PINSAFEC S3 ON U.G=S3.C AND S3.B=4 LEFT OUTER JOIN PINSAFEC S4 ON U.G=S4.C AND S4.B=5 LEFT OUTER JOIN PINSAFEN A1 ON U.G=A1.A AND A1.C=3 LEFT OUTER JOIN PINSAFEN A2 ON U.G=A2.A AND A2.C=0 LEFT OUTER JOIN PINSAFEN A3 ON U.G=A3.A AND A3.C=1]]></tables>
</report>

List Users IDs, email, creation date, last login, last pin change and repository name

<report name="allUsersdatalastloginandrepo">
       <title>Users IDs, email, date, last login, last pin change and repo name</title>
      <description>Lists all the Users Ids, email address, created date, last login, last pin change and repository name</description>
  <headers>
   <header>Username</header>
   <header>ReposName</header>
   <header>Email</header>
   <header>CreateDate</header>
   <header>LoginDate</header>
   <header>PINChange</header>
  </headers>
  <fields>U.H, U.E, T.A, A1.D, A2.D, A3.D</fields>
  <tables><![CDATA[PINSAFEJ U LEFT OUTER JOIN PINSAFEP T ON U.G = T.A AND T.B='email' LEFT OUTER JOIN PINSAFEN A1 ON U.G = A1.A AND A1.C = 3 LEFT OUTER JOIN PINSAFEN A2 ON U.G = A2.A AND A2.C = 0 LEFT OUTER JOIN PINSAFEN A3 ON U.G = A3.A AND A3.C = 1]]></tables>
 </report>

Writing Your Own Reports

This section is intended only for customers who are familiar with writing SQL queries, and with XML.

Database Schema

While writing your report, refer to the Database Schema page for reference on the database table and column names used by Swivel.

Report Definition Format

A report definition is an XML element, which includes elements of a SQL query, plus display information. The format is:

<report name="reportName">
 <title>Report Title</title>
 <description>Report description</description>
 <headers>
   <header>header1</header>
   ...
 </headers>
 <fields>SQL-fields</fields>
 <tables>SQL-tables-and-joins</tables>
 <query>SQL-query</query>
 <params>
   <param name="param-name" label="param-label" type="String|Integer|Date" />
   ...
 </params>
</report>

• reportName: Used internally, must be unique.

• Display Elements: <title>, <description>, and <headers>. The title is displayed in the drop-down. The number of headers should match the number of columns in the field list.

• SQL Query: The query is built as: SELECT SQL-fields FROM SQL-tables-and-joins WHERE SQL-query

• query: Optional. If missing, no WHERE clause is added. You can add “ORDER BY” or “GROUP BY” to the query element, or to the tables element.

• params: Used to set values for replaceable parameters within the query. Types must be “String”, “Integer” or “Date” (case-sensitive).

Troubleshooting

HTTP Status 500 error when selecting a new report

Versions 3.8 to 3.9.3 may produce an error similar to:

java.lang.IllegalArgumentException: fromIndex(50) > toIndex(0)
java.util.SubList.<init>(Unknown Source)
java.util.AbstractrList.subList (Unknown Source)
com.swiveltechnologies.pinsafe.server.reporting.ReportResult.getRows (ReportResult.java:122)

Cause: This is caused by the last page you were on when you used a report. For example, if you were on page 4 of one particular report, but then attempt to access another report which does not contain 4 pages, it will attempt to access page 4 of that report instead of page 1 and fail.

Solution: Upgrade Swivel, or as a workaround, make sure that you request page 1 of a report before leaving the reporting page. Closing down the web browser should also alleviate this.
